Low Voltage Detector in a Micro FLEXI-BOX



SPECIFICATION

Voltage Detector 0.3 MHz to 700 MHz
Insertion Loss 0.2 dB  ± 0.2 dB
Return Loss > 15 dB
Impedance 50 Ohms
Power Handling +10 dBm (10 mW)

Box Dimensions
35 mm x 35 mm x 23.5 mm
From GBP £24.61 + Connectors
[Shopping Cart]Shopping Cart











  This is a radio frequency peak voltage detector that operates over the MF, HF, VHF and part of the UHF bands.

DETECTED OUTPUT

INPUT   [Photograph of Low Voltage Detector Box showing connectors]   OUTPUT







  The price of the Low Voltage Detector FLEXI-BOX is dependant on the connectors required. To find the price for your connector preference or to make a purchase, select your connector requirements in the boxes beside the photograph above and then select "Add to Cart".




Description

  The Low Voltage Detector is built in a Micro size FLEXI-BOX and the connectors can be selected from BNC, N, SMA and TNC. This is a 50Ω device and has an Input, Output and a Detected Output. The detector diodes are arranged to ensure that there is no dc offset generated which could effect the gain control loop on some signal generators and network analysers, causing them to give incorrect output levels.

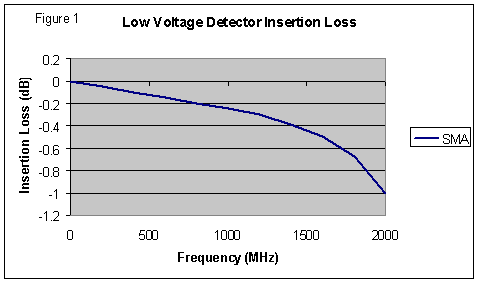

[Graph of voltage detector insertion loss]

[Graph of voltage detector return loss]

[Graph of voltage detector frequency response]
